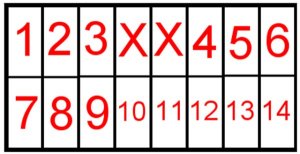

A detailed schematic view of the pinouts on the Impreza Radio Main Body wiring harness. The two "X" marks indicate where there is a blank spot left on the connector by the clip on the harness. Just for further clarification, this is the view you would see of the main body harness that connects to the stock radio if the connector was facing you and the wires were facing back into the dash. If you have any questions, please feel free to email me.



Pin Wire Color Function
1 Violet Radio Illumination Light +
2 Red/Yellow Right Front Door Tweeter/Speaker (+) (Brown/White at speaker)
3 Brown/White Left Front Door Tweeter/Speaker (+) (Red/Yellow at speaker)
4 Blue/Yellow Right Rear Door Speaker (+) (Blue/Yellow at speaker)
5 White/Red Left Rear Door Speaker (+) (Blue/Yellow at speaker)
6 Blue/Red Main Fuse Box, Fuse No. 2 (15A) (BATTERY - Continuous Power)
7 Orange/White Radio Illumination Light (-)
8 White/Black Right Front Door Tweeter/Speaker (-) (Green at speaker)
9 Green Left Front Door Tweeter/Speaker (-) (White/Black at speaker)
10 Yellow/Green Fuse & Relay Box, Fuse No. 9 (15A) (ACC - Switched Power)
11 Black Chassis Ground
12 Red/White Right Rear Door Speaker (-) (Red/White at speaker)
13 Red/Black Left Rear Door Speaker (-) (Red/White at speaker)
14 N/A Unused (Remote Turn On)


Standard Disclaimer: Modification of your car involves risks and may void your warranty. I can not be held responsible for the modifications you consciously decide to undertake nor for the results of doing so.
