This is just a quick informational page on how to adjust the beam pattern of Morette Twin headlamps. Questions may be directed to me here.

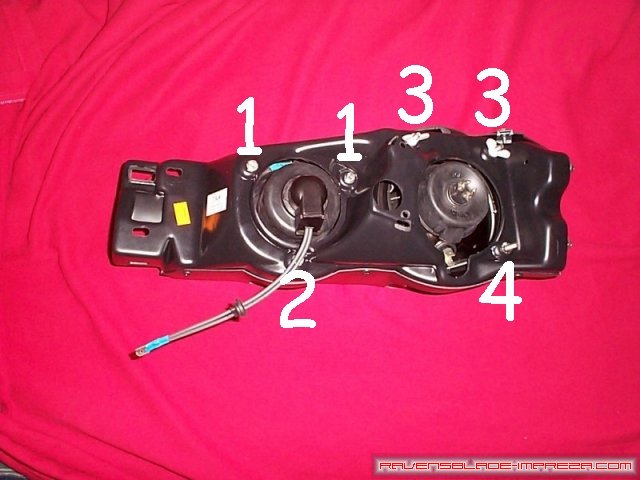

Now that you have the headlamps installed, you will probably want to adjust them to an effective pattern (mine were heavily out of alignment upon arrival, as is to be expected with a transoceanic trip from France). The picture below should help give you an idea of what to do- it is of the passenger side lamp as viewed from behind. The driver side lamp will be a mirror image of it.
H2 High Beam: The H2 high beam only lamp is the inboard lamp, closest to the grill. This lamp is adjusted by means of three bolts- I have marked them 1 and 2 in the picture. A combination of tightening/loosening the bolts labelled 1 will give you your left/right adjustment. Tightening the bolt on the right will push the beam left and vice versa. The bolt labelled 2 in the picture is for up/down. Tightening this bolt will make the beam rise, while loosening it allows the beam to dip.
H4 High/Low Beam: This is the outside beam of the two- the one closest to the corner marker. It is the one the stock wiring clipped into. This one is adjusted via two white wingnuts and one bolt. This one adjusts in the same manner as the high beam only lamp- the wingnuts (labelled with a 3) give you right/left adjustment, while the bolt labelled 4 is used to adjust your height.
Standard Disclaimer: Modification of your car involves risks and may void your warranty. I can not be held responsible for the modifications you consciously decide to undertake nor for the results of doing so.
|
|
