This modification is not yet fully documented- there is alot I would do differently now that the mod is done, and I will be redocumenting the proceedure when time and money permit. Any questions or comments about this modification may be directed here.

Parts And Pieces And Bits Oh My!

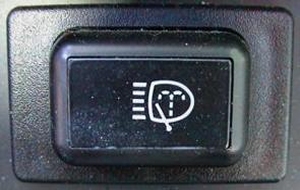

Dash Switch: Part Number 83013TA000

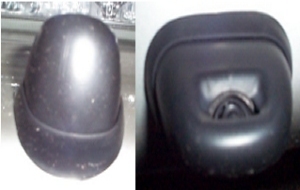

The Nozzles And Rubber Mount: Part Number 86636FA040

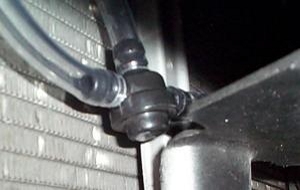

The "T" Fitting: Part Number 786634010

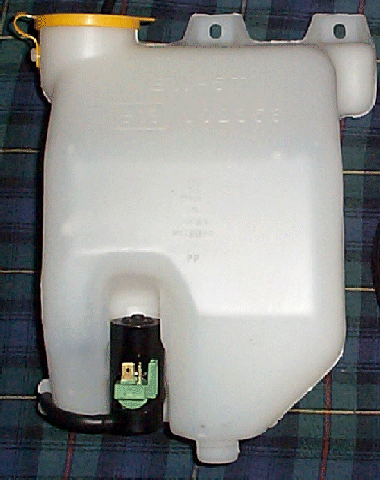

Washer Bottle

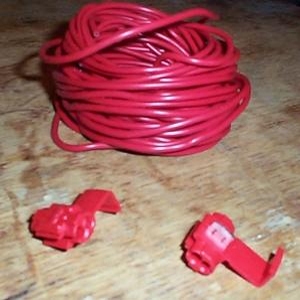

Wire And Quick Connects

OK, Now For The Instructions

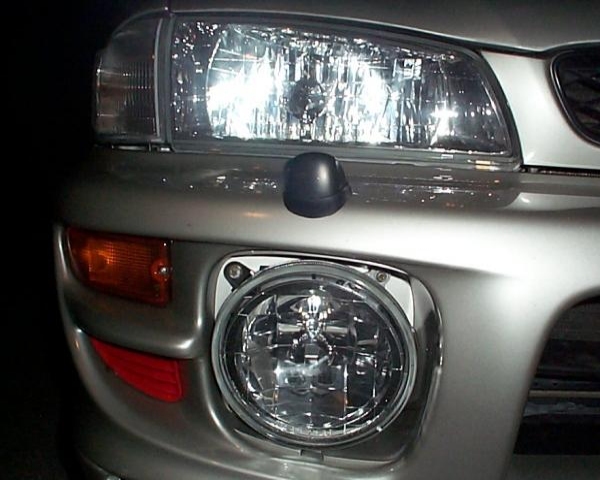

OK, this is how you line up the holes for drilling: it is not an exact science. It is harder than you think to find the center of the curved headlight in relation to the also curved bumper. Coincidentally, the center of the foglight happens to be the center of the headlight! You can fairly easily find the center of the foglight, as they have the nice prism lines in the glass, and one happens to run right through the center. Take a plumb line up from there and mark the bumper. This will be the left/right center line for the holes in the bumper.

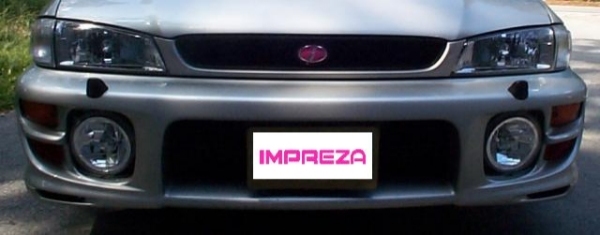

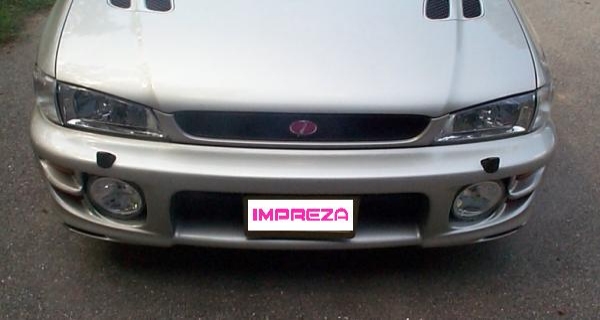

There it is....done!

Standard Disclaimer: Modification of your car involves risks and may void your warranty. I can not be held responsible for the modifications you consciously decide to undertake nor for the results of doing so.
