This mods page is written using one of the radiator shrouds manufactured in a limited run by jnorth from the RS25.com forums, but the instructions will work for any Subaru radiator shroud. Questions or comments may be directed to me here.

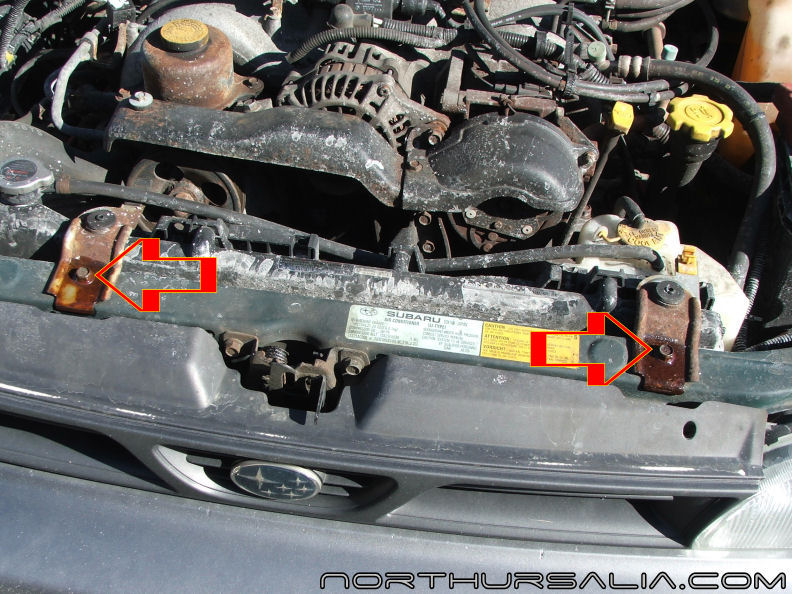

This could not be much easier- you only have two bolts you need to work with- they are marked in the photo. Use a 12mm socket to remove them. I have soaked them in PB Blaster to free them up.

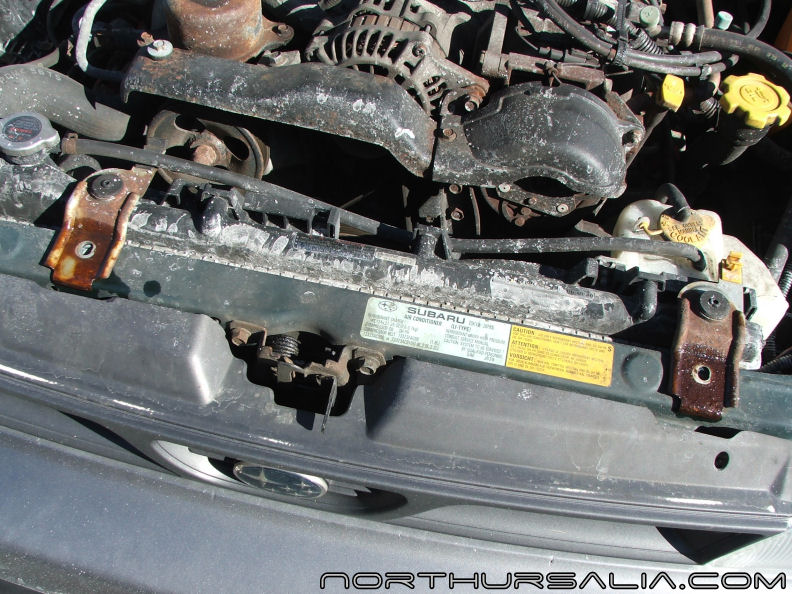

With the bolts out, you need only wiggle the brackets to pull them off their posts on the radiator.

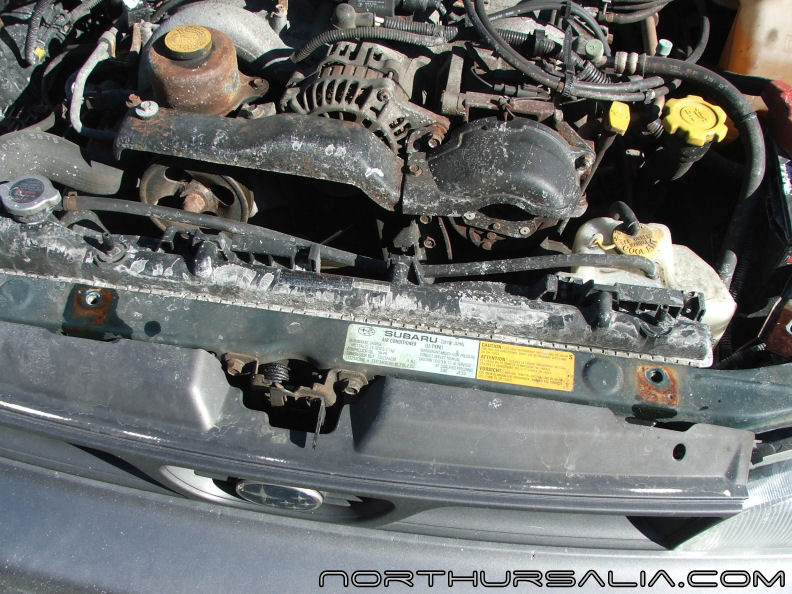

With the brackets removed, you can put the shroud in place.

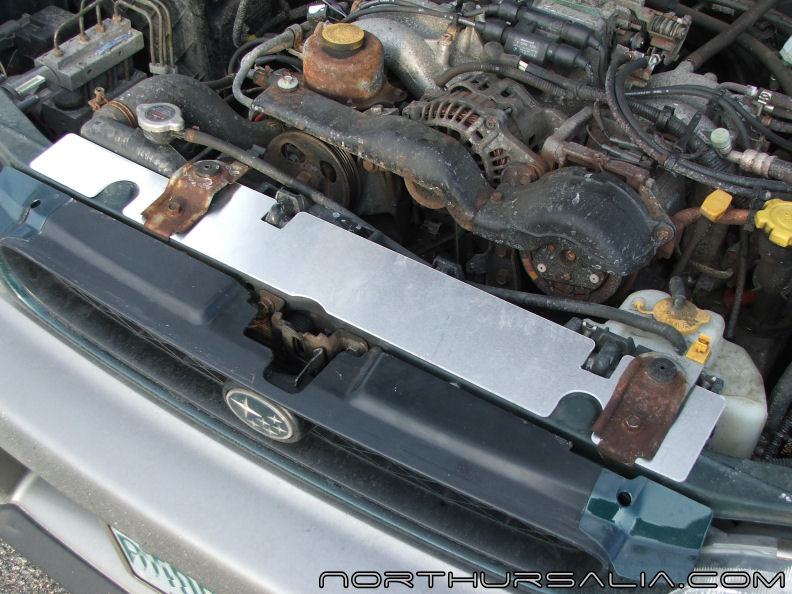

With the shroud in place, simply put the brackets back on, put the two bolts back in snugly, and you are done. This shroud was made for 2.5 RS models, but it only needed slight enlarging of the cutouts on the engine side to fit my OBS radiator (the same found in 1.8 and 2.2 model Imprezas).
Standard Disclaimer: Modification of your car involves risks and may void your warranty. I can not be held responsible for the modifications you consciously decide to undertake nor for the results of doing so.
|
|
